1 Pole 10A Schneider Miniature Circuit Breaker

Price - Rs. 1,750.00

WEDABIMA HARDWARE Electrical Products

0774953653

info@wedabimahardware.lk

Sausiri Complex , High Level Road , Nugegoda

Description

Brand - Schneider

Model - A9N1P10C

Range of Product - Distribution

Product or Component Type - Acti9

Range - Acti9

Product name - XC60

Product or Component Type - Miniature circuit-breaker

Device short Name - XC60

Poles Description - 1P

Number of Protected Poles - 1

[In] Rated Current - 10 A

Network Type - DC/AC

Trip Unit Technology - Thermal-magnetic

Curve Code - C

Utilisation Category - Category A conforming to EN/IEC 60947-2

Suitability for Isolation - Yes conforming to EN/IEC 60947-2

Complementary

Network frequency - 50/60 Hz
[Ue] rated operational voltage - 220...240 V AC 50/60 Hz 12...48 V DC
60 V DC
Magnetic tripping limit - 8 x In +/- 20 %

Breaking capacity - 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 12...48 V DC conforming to EN/IEC 60947-2
6 kA Icu at 60 V DC conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity - 15 kA conforming to EN/IEC 60947-2 - 12...48 V DC
6 kA conforming to EN/IEC 60947-2 - 60 V DC
Limitation class - 3 conforming to EN/IEC 60898-1
3 conforming to EN/IEC 60947-2

[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage - 6 KV conforming to EN/IEC 60947-2
Contact position indicator - Yes
Control type - Toggle

Local signalling - ON/OFF indication
mounting mode - Clip-on
mounting support - 35 mm DIN rail
Comb busbar and distribution block compatibility - Top: YES
9 mm pitches - 2

Height - 85 mm
Width - 18 mm
Depth - 77.5 mm
net weight - 0.115 kg
Colour - White

Mechanical durability - 20000 cycles
Electrical durability - 20000 cycles
Connections - terminals Tunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (top)
Wire stripping length - 13 mm for top or bottom connection
Tightening torque - 2 N.m
Earth-leakage protection - Separate block
Product compatibility - C60 auxiliary
C60 accessories
Overvoltage category - IV

Environment
Standards EN/IEC 60947-2 EN/IEC 60898-1
Pollution degree - 3
Tropicalisation - 2 conforming to IEC 60068-1
Relative humidity - 95 % at 55 °C
ambient air temperature for operation - 95 % at 55 °C
ambient air temperature for storage - 30…70 °C

Packing Units
Unit Type of Package 1 - PCE
Number of Units in Package 1 - 1
Package 1 - Height 3.2 cm
Package 1 - Width 8.4 cm
Package 1 - Length 8.8 cm
Package 1 - Weight 100 g

Unit Type of Package 2 - BB1
Number of Units in Package 2 - 12
Package 2 Height - 9.4 cm
Package 2 Width - 10 cm
Package 2 Length - 24.8 cm

Package 2 - Weight 1.34 kg
Unit Type of Package 3 - CAR
Number of Units in Package 3 - 144
Package 3 Height - 28.4 cm
Package 3 Width - 30.2 cm
Package 3 Length - 36 cm
Package 3 Weight - 16.64 kg

wedabima.com and D Factor Group make no warranty or representation for any products, services, deals and transactions between the user and the advertisers. Users strictly at their own risk.

Related Items

3 Pole - 25A Schneider Miniature Circuit Breaker

Rs. 8,130.00

BUY NOW VISIT STORE | WEDABIMA HARDWARE Electrical Products

3 Pole - 25A Schneider Miniature Circuit Breaker price in Sri Lanka. Best deals from වැඩබිම.com for Hardware items in Sri Lanka. Brand - Schneider Model - A9N3P25C Device application - Distribution Range of, etc... Find best deals from වැඩබිම

0774953653

40A 3P - 15KA Schneider Circuit Breaker

Rs. 23,040.00

BUY NOW VISIT STORE | WEDABIMA HARDWARE Electrical Products

40A 3P - 15KA Schneider Circuit Breaker price in Sri Lanka. Best deals from වැඩබිම.com for Hardware items in Sri Lanka. Brand - Schneider Model - EZC100N3040 Range of Product - EasyPact Product or Component Type, etc... Find best deals from වැඩබිම

0774953653

2 Pole - 40A Schneider Miniature Circuit Breaker

Rs. 4,880.00

BUY NOW VISIT STORE | WEDABIMA HARDWARE Electrical Products

2 Pole - 40A Schneider Miniature Circuit Breaker price in Sri Lanka. Best deals from වැඩබිම.com for Hardware items in Sri Lanka. Brand - Schneider Model - A9N2P40C Device application - Distribution Range of, etc... Find best deals from වැඩබිම

0774953653

2 Pole 63A Schneider Switch Disconnector

Rs. 4,520.00

BUY NOW VISIT STORE | WEDABIMA HARDWARE Electrical Products

2 Pole 63A Schneider Switch Disconnector price in Sri Lanka. Best deals from වැඩබිම.com for Hardware items in Sri Lanka. Brand - Schneider Model - EZ9S16263 Range - Easy9 Product or Component Type - Switch , etc... Find best deals from වැඩබිම

0774953653

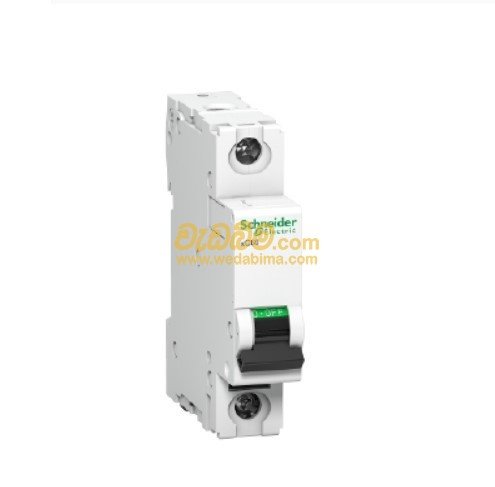

1 Pole - 32A Schneider Miniature Circuit Breaker
